Brake Pad Set:04465-25040--Chongqing Hongyu Friction Products Co., Ltd.

Description
Ref.:	04465-25040
Name:	Brake Pad Set
Unit:	SET
Price:

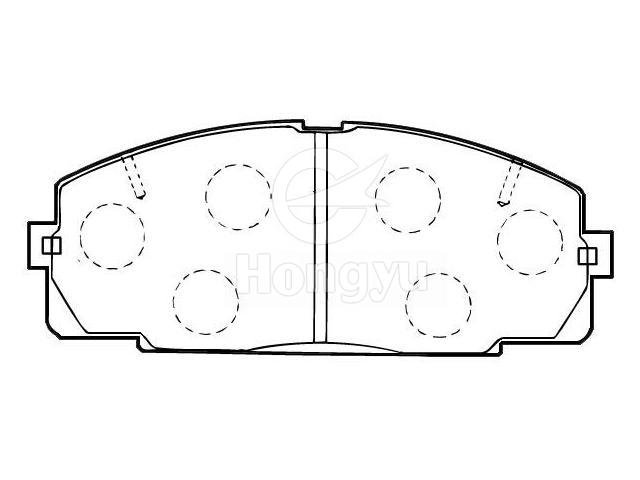

Front Axle Brake System : AKB Width : 145.4 mm Height : 56.9 mm Thickness : 15.5 mm

Model	Engine			Type	CYL	year
FOTON MPX MPV					3/07 - /
MPX MPV 2.4	4 G 64	2350	125	MPV	4	3/07 - /
JINBEI (BRILLIANCE) GRANSE MPV					2/04 - /
GRANSE MPV 2.0	4G20D4L	1977	125	MPV	4	1/07 - /
GRANSE MPV 2.4	4RB2	2438	139	MPV	4	2/04 - /
JINBEI (BRILLIANCE) HAISE II Bus					8/03 - /
HAISE II Bus 2.2	491QME	2237	103	Bus	4	8/03 - /
HAISE II Bus 2.4	4G24	2438	122	Bus	4	8/03 - /
HAISE II Bus 2.4	4 G 64 (12 V)	2350	131	Bus	4	8/03 - /
TOYOTA HIACE II Box (H20)					5/84 - 1/89
HIACE II Box (H20) 1.8	2Y	1812	79	Box	4	3/83 - 1/89
HIACE II Box (H20) 2.0	3Y	1998	88	Box	4	1/84 - 1/89
HIACE II Box (H20) 2.2 D	2Y	2173	67	Box	4	3/83 - 1/89
HIACE II Box (H20) 2.4 D	2Y	2446	75	Box	4	5/84 - 1/89
TOYOTA HIACE II Wagon (H20)					1/87 - 1/88
HIACE II Wagon (H20) 2.4 D (H5G)	2L	2446	75	Bus	4	8/84 - 8/89
HIACE II Wagon (H20) 1.8 (H5G)	L	1812	79	Bus	4	3/83 - 1/89
HIACE II Wagon (H20) 2.0 (H5G)	3Y	1998	88	Bus	4	1/85 - 8/89
HIACE II Wagon (H20) 2.2 D (H5G)	L	2173	67	Bus	4	3/83 - 1/89
HIACE II Wagon (H20) 2.4 D 4WD (H5F)	L	2446	73	Bus	4	1/87 - 1/88
TOYOTA HIACE III Box (H50)					2/90 - 8/95
HIACE III Box (H50) 2.4	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (H50) 2.4 4WD	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (H50) 2.0	1RZ	1998	101	Box	4	2/90 - 8/95
TOYOTA HIACE III Wagon (H50)					0/93 - 8/95
HIACE III Wagon (H50) 2.4 4WD	2RZ-E	2438	120	Bus	4	8/89 - 8/95
HIACE III Wagon (H50) 2.4 D	2L	2446	78	Bus	4	0/93 - 8/95
TOYOTA HIACE IV Box					1/01 - /
HIACE IV Box 2.4 (RCH12_, RCH22_)	2RZ-E	2438	116	Box	4	8/95 - 4/98
HIACE IV Box 2.4 4WD (RCH18_, RCH28_)	2RZ-E	2438	116	Box	4	8/95 - 4/98
HIACE IV Box 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Box	4	4/98 - /
HIACE IV Box 2.7 4WD (RCH19_, RCH29_)	3RZ-FE	2694	143	Box	4	4/98 - /
HIACE IV Box 2.4 D (LXH12_, LXH22_)	2L	2446	79	Box	4	8/95 - /
HIACE IV Box 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Box	4	8/95 - /
HIACE IV Box 2.4 TD 4WD (LXH18_, LXH28_)	2L-T	2446	90	Box	4	8/95 - /
HIACE IV Box 2.5 D-4D	2KD-FTV	2494	88	Box	4	1/01 - /
HIACE IV Box 2.5 D-4D	2KD-FTV	2494	102	Box	4	1/01 - /
TOYOTA HIACE IV Wagon					1/01 - /
HIACE IV Wagon 2.4 (RCH12_, RCH22_)	2RZ-E	2438	115	Bus	4	8/95 - 4/98
HIACE IV Wagon 2.4 4WD (RCH18_)	2RZ-E	2438	116	Bus	4	8/95 - 4/98
HIACE IV Wagon 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Bus	4	4/98 - 1/01
HIACE IV Wagon 2.7 4WD (RCH19_)	2L-T	2694	143	Bus	4	4/98 - /
HIACE IV Wagon 2.7	3RZ-FE	2694	144	Bus	4	1/01 - /
HIACE IV Wagon 2.4 D	2L-T	2446	75	Bus	4	7/99 - /
HIACE IV Wagon 2.4 D	2L	2446	79	Bus	4	8/95 - /
HIACE IV Wagon 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Bus	4	8/95 - /
HIACE IV Wagon 2.4 TD 4WD (H18/28)	2L-T	2446	90	Bus	4	8/95 - /
HIACE IV Wagon 2.5 D-4D	2KD-FTV	2494	88	Bus	4	1/01 - /
HIACE IV Wagon 2.5 D-4D	2KD-FTV	2494	102	Bus	4	1/01 - /

Application

TOYOTA Hiace IV (Latin America) 2007
