Description
Ref.:	T2R7946

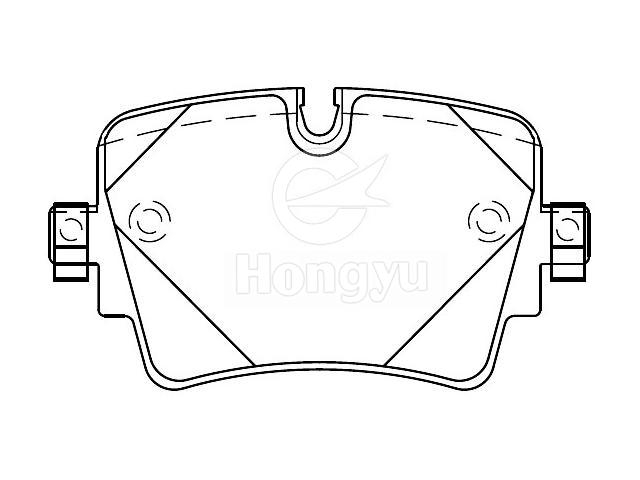

Name:	Brake Pad Set
Unit:	PCS
Price:
Rear Axle Width : 114 mm Height : 63.8 mm Thickness : 16.4 mm

Model	Engine			Type	CYL	year
JAGUAR F-TYPE Convertible (X152)					4/15 - /
F-TYPE Convertible (X152) 3.0	AJ 126	2995	340	Convertible	6	0/12 - /
F-TYPE Convertible (X152) 5.0 S	508PS	5000	495	Convertible	8	1/12 - /
F-TYPE Convertible (X152) 3.0 S	AJ 126	2995	380	Convertible	6	0/12 - /
F-TYPE Convertible (X152) 3.0 S AWD	AJ 126	2995	380	Convertible	6	4/15 - /
F-TYPE Convertible (X152) 5.0 R	508PS	5000	551	Convertible	8	0/13 - /
F-TYPE Convertible (X152) 5.0 R AWD	508PS	5000	551	Convertible	8	4/15 - /
JAGUAR F-TYPE Coupe (X152)					4/15 - /
F-TYPE Coupe (X152) 5.0 R AWD	508PS	5000	551	Coupe	8	4/15 - /
F-TYPE Coupe (X152) 3.0	AJ 126	2995	340	Coupe	6	4/14 - /
F-TYPE Coupe (X152) 3.0 S	AJ 126	2995	380	Coupe	6	4/14 - /
F-TYPE Coupe (X152) 5.0 R	508PS	5000	551	Coupe	8	0/13 - /
F-TYPE Coupe (X152) 3.0 S AWD	AJ 126	2995	380	Coupe	6	4/15 - /

Application

JAGUAR F-Type 5.0L Red Caliper 2014
